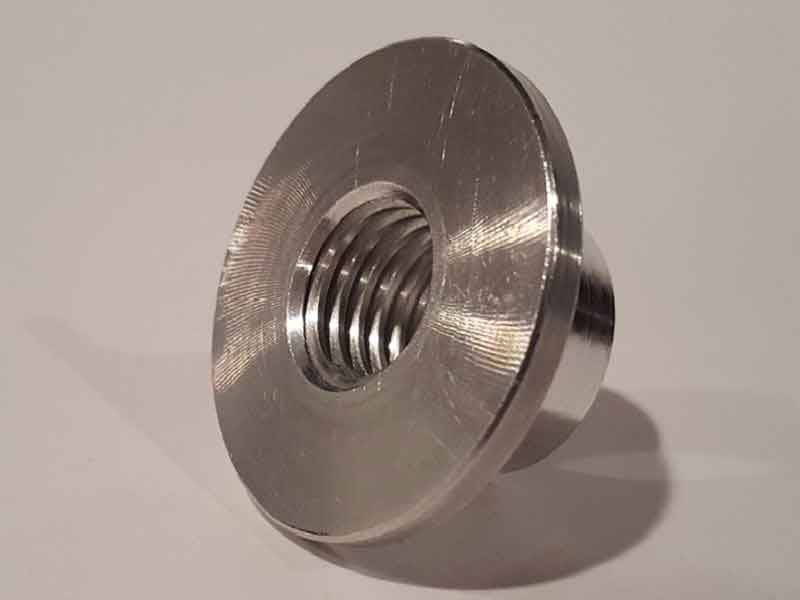

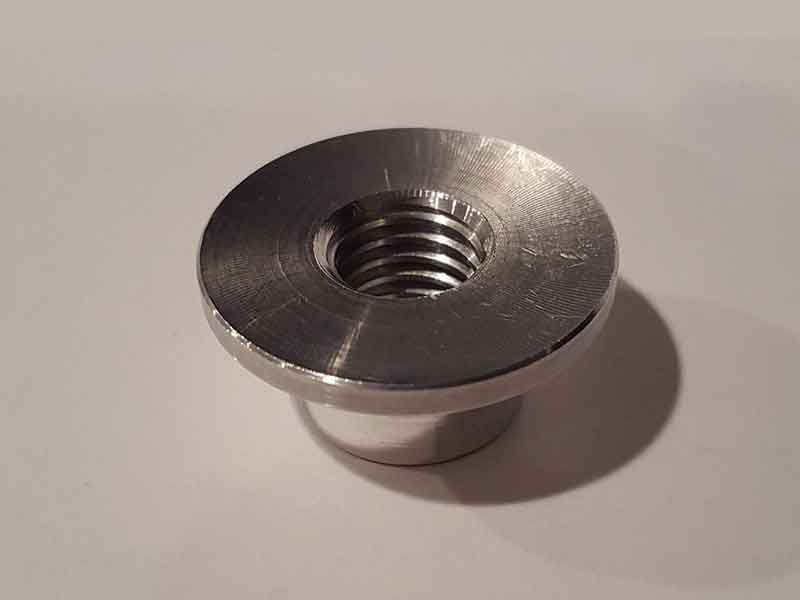

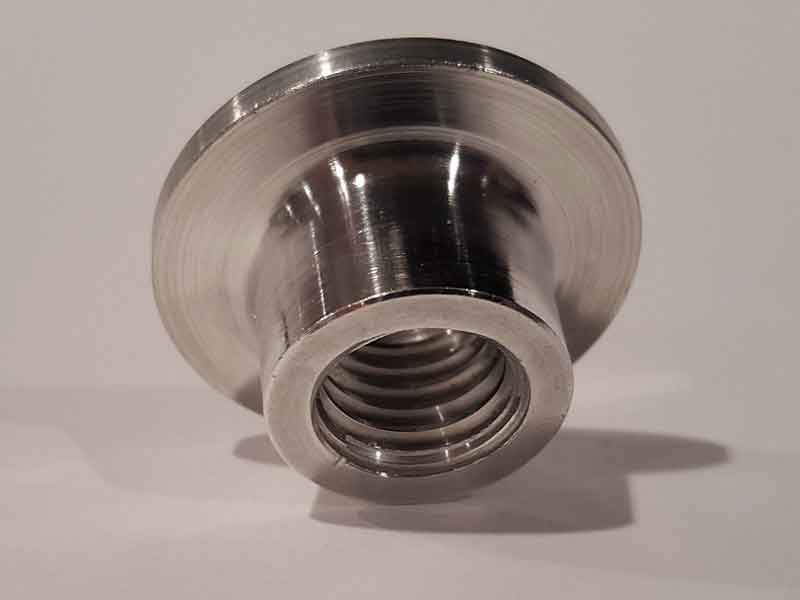

Orifice Flange
| Product Specification | |
|---|---|
| Length | .010 to 24″ |
| Diameter | .010 to 3″ |
| Thread Type | UNC, UNF, Acme, Machine |
| Material | Brass, Stainless Steel, Carbon Steel, Alloy Steel, Aluminum |
| Machine Surface Finish | Up to a 16 micro |
| Tolerances | +/-.001″ |
Orifice flanges are mechanical rims used in several industries for a number of different applications. They are generally used in conjunction with orifice meters. These devices help measure the flow rate of both gases as well as liquids in respective pipelines. Two orifice flanges are also sometimes referred to as orifice flange unions. The drop in pressure of the flow through an orifice plate is measured with the help of two pipe taps provided on each flange. However, flanges are not present on the orifice plates. These plates come in different sizes based on the application on which they are used. The flanges are spread apart with the help of two jack screws. This helps change the orifice plate easily. You can choose from different types of orifice flanges such as threaded, weld neck, and slip-on flanges. All these flanges feature a raised face and are installed in a straight run or pipe. This helps prevent any turbulence at the plate. China Copper Screws is one of the leading providers of high-quality orifice flanges.
We can provide a wide variety of orifice flanges in the following specifications:
| Length | .010 to 24” |
| Diameter | .010 to 3” |
| Thread Type | UNC, UNF, Acme, Machine |
| Tolerances | +/-.001” |
| Machine Surface Finish | Up to a 16 micro |
| Material | Brass, Stainless Steel, Steel, Carbon Steel, Alloy Steel, Aluminum, Aircraft Aluminum, Plastic |
The following are some industries which use orifice flanges:
At China Copper Screws, our team with years of experience in the field understand the requirements of our customers. We can provide quality products and insure that you receive exactly what you are looking for. If you want to know more about orifice flanges or any other types of flanges give us a call and our experts will help you choose the right type of flange based on your application requirements. Please reach us on our number +86-0755-29626256. You can also email your inquiries or specific requirements to inquiry.copper@shapedparts.com.
We know that we are - and should be - judged by how quickly, accurately & cost-effectively we meet our customer's needs. Our in-house quality assurance team begins the process with the receipt of an order. They maintain close communications with customers to ensure that customer goal are clearly understood & completely achieved.
